AIR10 2-Way Active Sound-Reinforcement Loudspeaker
AIR10 2-Way Active Sound-Reinforcement Loudspeaker
Couldn't load pickup availability
Overview

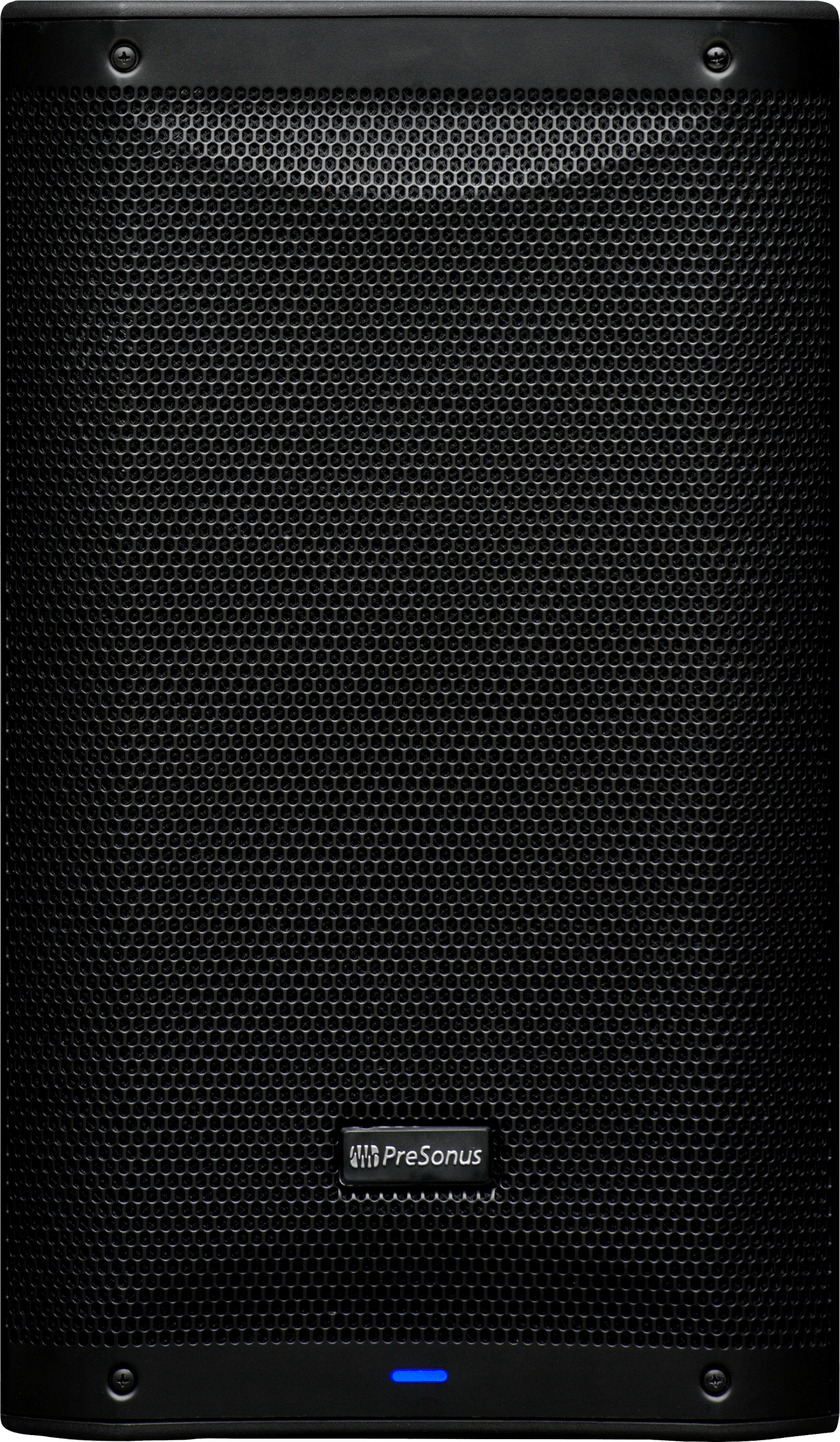

Compact and lightweight, the PreSonus® AIR10 2-way active PA loudspeaker's 10-inch woofer and 1-inch HF driver deliver a rich, extended low-end and natural high-frequency extension in an enclosure that fits in the back of a small car. Backed by 1,200W (peak) of Class D/Class AB power and enhanced with easy-to-use digital tuning functions, the AIR10 gives you all the power and tools you need for both mobile and installed sound. A choice of inputs enables use with a variety of sources.
An easy-to-use signal processor with presets makes it simple to customize the AIR10's response for use as front-of-house mains, as monitor wedges, for music playback, for improved speech intelligibility and for enhanced low end and a warmer sound. Treble and bass controls boost or cut by 10 dB to compensate for room anomalies. Location presets optimize performance for stand and bracket mounting as well as flown installations.
The AIR10's multi-angle enclosure sports nonskid rubber feet on the bottom for upright front-of-house use and on one side for stage monitor applications. Rig it using M10 fly points or ground-stack for portable applications. Mount it on a tripod or atop an AIR-series subwoofer using an optional sub pole. An integrated dual-position pole mount lets you aim the speaker level or at a 7.5˚ downward tilt. And the AIR10 is easy to transport, thanks to its top-mounted handle.
With its pro features and audio quality, the AIR10 is a great choice for mobile and installed sound.
Overview
Features
- 1-inch, high-frequency compression driver and 10-inch woofer with a 2-inch voice coil
- 900W (peak) Class D power amplifier for LF driver and 300W (peak) Class A/B amplifier for HF driver
- Maximum SPL 121 dB peak with 66 Hz to 20 kHz frequency response
- 90° x 60° (horizontal x vertical) dispersion pattern
- Onboard mixer with two combo XLR and ¼-inch inputs and one summed balanced output
- Easy-to-use DSP performance presets: DJ (music playback), FOH (normal front-of-house), Monitor (floor wedge), Speech (intelligibility)
- Additional presets and controls: Stand (pole or tripod mounting), Bracket (wall mounting), Suspend (flown applications)
- Rugged, plastic, multi-angle enclosure for mains or monitor-wedge applications, with comfortable ergonomic handle and tour-grade, 1.2 mm steel grille
- 35 mm pole socket with 7.5˚ downward tilt
- M10 rigging points for suspended installation
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Multiple Inputs for a Variety of Sources
AIR full-range loudspeakers feature two combo XLR mic/TRS line inputs, each with a Class A mic preamp and independent gain control. A stereo ⅛-inch connection admits signals from consumer audio devices. These signals can be combined with the internal mixer, and a balanced XLR Mix output lets you pass the signals to other AIR-series loudspeakers.
PreSonus® AIR Series Six-Year Warranty
When you choose AIR-series loudspeakers, you choose confidence. Rest assured that your PreSonus® speakers are in it for the long haul. We take our build quality seriously, and if anything goes wrong with them in your first six years of ownership (assuming you don’t abuse them), the repair or replacement is on us.
Specs
Electronics
Auxiliary Input
1/8 in (3.5 mm) Stereo
Channels
Three
Inputs
Three - (2 x XLR/TRS Mic/Line Combo, 1 x 1/8” TRS Stereo)
Line Out
One - 1 x XLR Mix Out
Power Consumption
2.3A (230V-50 Hz), 4.6A (120V)
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Amplifier Type
Class D (LF), Class AB (HF)
Color
Black
Product Name
AIR10 2-Way Active Sound-Reinforcement Loudspeaker, Black, 220-240V UK
Series
AIR
Hardware
Cabinet Material
H-PP Molded
Grille Material
1.2 mm Steel
HF Powere
300 Watts
HF Transducers
1” Compression
Handle
1 Top
LF Power
900 Watts
LF Transducers
10” (2” Voice Coil)
Pole Socket
Dual Position (0˚, 7.5˚)
Measurements
Product Depth
11.5" (291 mm)
Product Height
20.3" (516 mm)
Product Width
11.8" (300 mm)
Miscellaneous
Commodity Code
8518220090
DSP Features
LCD Screen With EQ And Multiple Presets
Power Cable
IEC
Suspension
M10 Suspension Points, Flypoints: 2 Top, 1 Back
Performance
Peak SPL
121 dB
Total Power Output
1200 Watts (Peak)
Speakers
Coverage Pattern
90 degree (H) x 60 degree (V)
Crossover Frequency
2.2 kHz
Speaker Type
Active 2-Way
Total Impedance
NA
