Eris® Studio 4 (Single)
Eris® Studio 4 (Single)
Couldn't load pickup availability

Overview
4.5-inch 2-Way Active Studio Monitors with EBM Wave Guide
Eris Studio-series monitors are designed for superior performance with sonic clarity and accuracy, so you hear every detail in your mix. Compact and powerful, the third-generation Eris Studio 4 builds on decades of technological expertise, delivering rich low-end and controlled high-frequency response that reproduces every detail in your recordings with a natural sound unparalleled in its class.
The custom-designed EBM (Elliptical Boundary Modeled) waveguide delivers superior high-frequency response and wide 120-degree horizontal dispersion to create a broader sweet spot. Narrow vertical dispersion reduces reflections from your desk, while the silk-dome tweeter ensures snappy, accurate transient reproduction. An elegant new enclosure design improves the waveguide performance so you'll hear the finest details in your mix.
The 4.5-inch woven-composite low-frequency driver delivers tight, clear bass with plenty of punch, defying the Eris Studio 4's space-saving size. The ported enclosure and 50W of biamped power combine to maximize bass response and allow the Eris Studio 4 to reach down to an astonishing 55 Hz—without a subwoofer!
Modern musicians need studio monitors that perform accurately, even in small mix rooms; that's why Eris Studio 4 is equipped with controls that ensure the flattest response in your mix environment. Acoustic tuning controls let you configure your studio monitors perfectly for your room—you get Low-cut, Mid, and High controls, plus 3-way acoustic space tuning that helps you easily compensate for the sonic effects of speaker placement against a wall or in a corner.
Designed for superior performance in both home studios and small professional mix rooms, the Eris Studio 4 combines flexible connectivity with sonic accuracy that puts it in a class all its own.
Learn more about selecting the right studio monitor for your application.
Overview
Features
- 4.5-inch, woven-composite, low-frequency transducer
- 1-inch (25 mm), ultra-low-mass, silk-dome, high-frequency transducer
- 120˚ (H) x 60˚ (V) EBM waveguide for wide sweet spot
- Front-firing acoustic port for superior bass-frequency reproduction and optimized, resonance-suppressing internal bracing
- 50W, Class AB biamplification
- 55 Hz to 20 kHz frequency response
- 100 dB SPL (Peak, @ 1 meter)
- Acoustic Tuning controls: HF (±6 dB, continuously variable); Midrange (±6 dB, continuously variable), and Acoustic Space (flat, -2, -4 dB), plus highpass filter (Off, 80 Hz, 100 Hz)
- RF interference, output-current limiting, over-temperature, transient, subsonic protection and amplifier "soft start" feature (eliminates popping on power-up)
- Internal power supply with IEC connector and power switch with on/off LED

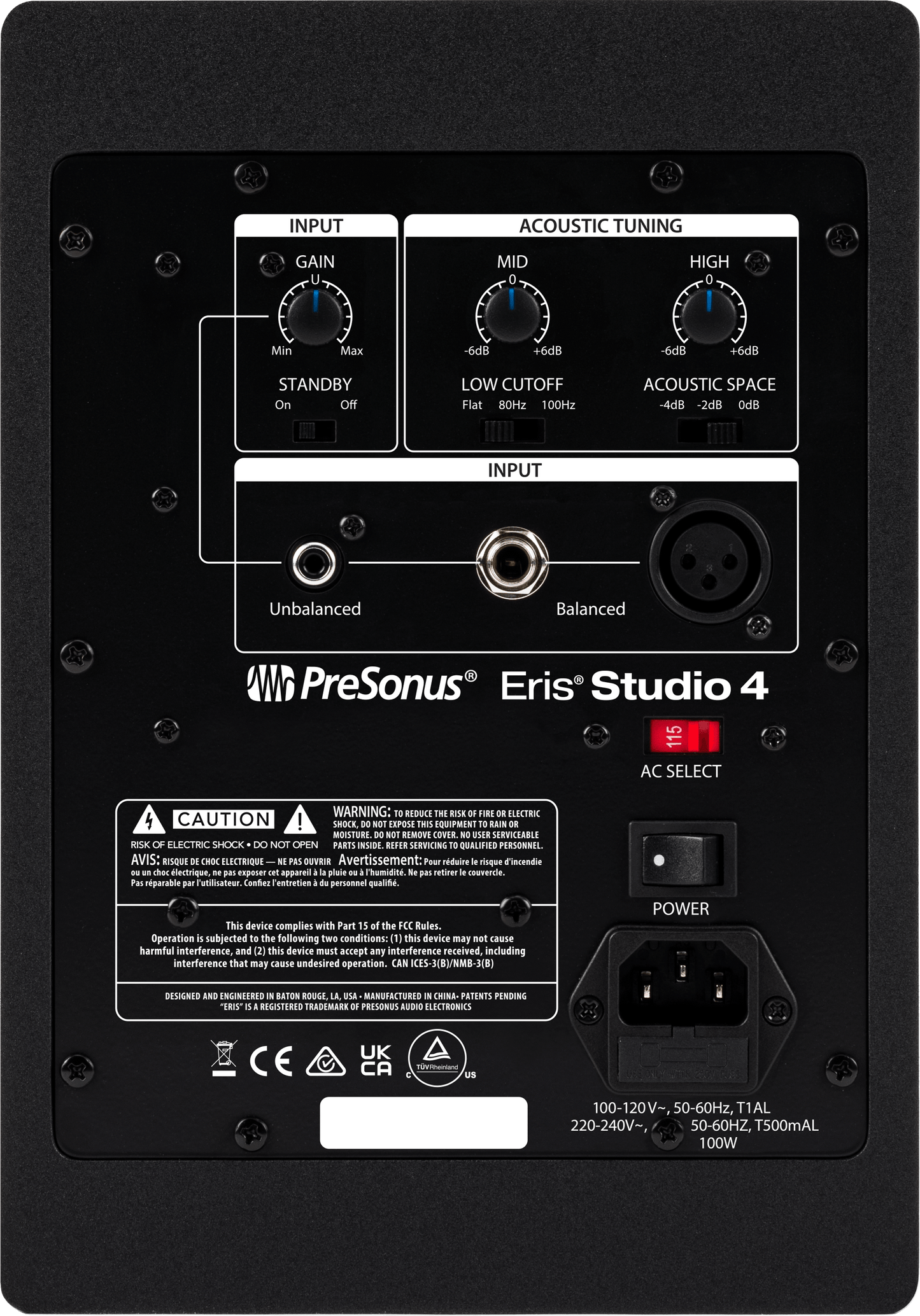

- Balanced XLR and ¼-inch inputs and unbalanced RCA inputs
Downloads
Don't see what you're looking for?
Log in to your my.presonus.com account.
Documentation
Don't see what you're looking for?
Log in to your my.presonus.com account.
Highlights
Honest. Expressive. Powerful.
Like all PreSonus® studio monitors, the Eris® Studio 4 offers consistent, accurate listening. Their stylish design makes them a welcome addition to any mix space, and their smooth, incredibly even frequency response ensures that your mixes will sound great everywhere.
Specs
Accessories
Footswitch
NA
Electronics
Input Impedance
10 kΩ
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
Eris® Studio 4, Black, 220-240V UK
Series
Eris®
Hardware
Audio Controls
Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
HF Powere
25 Watts
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter
LF Power
25 Watts
LF Transducers
4.5" Woven Glass Fiber Composite
Monitor Inputs
1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA
Monitor Type
2-Way Active
Power Amplifier Type
Class AB
Measurements
Product Depth
7.28" (18.5 cm)
Product Height
10" (25.4 cm)
Product Width
7" (17.8 cm)
Miscellaneous
Commodity Code
8518210000
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Performance
Peak SPL
99 dB (@ 1 meter)
Speakers
Coverage Pattern
120 degree (H) x 60 degree (V)
Crossover Frequency
2.7 kHz
Specs
Accessories
Footswitch
NA
Electronics
Input Impedance
10 kΩ
VoltageRequirements
100-240 VAC, 50-60 Hz
General
Color
Black
Product Name
Eris® Studio 4, Black, 220-240V EU
Series
Eris®
Hardware
Audio Controls
Volume High Frequency (±6 dB, center 10 kHz, continuously variable) Mid Frequency (±6 dB, center 1 kHz, continuously variable)
Cabinet Material
Vinyl-Laminated, Medium-Density Fiberboard
HF Powere
25 Watts
HF Transducers
1” Ultra Low Mass, Silk Dome Tweeter
LF Power
25 Watts
LF Transducers
4.5" Woven Glass Fiber Composite
Monitor Inputs
1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA
Monitor Type
2-Way Active
Power Amplifier Type
Class AB
Measurements
Product Depth
7.28" (18.5 cm)
Product Height
10" (25.4 cm)
Product Width
7" (17.8 cm)
Miscellaneous
Commodity Code
8518210000
Power Cable
IEC
Protections
RF Interference
Output-Current Limiting
Over-Temperature
Turn-On/Off Transient
Subsonic Filter
Performance
Peak SPL
99 dB (@ 1 meter)
Speakers
Coverage Pattern
120 degree (H) x 60 degree (V)
Crossover Frequency
2.7 kHz
Compare
Compare
Looking for the perfect studio monitor? PreSonus has options for all room sizes and budgets.
|
Eris® Studio 4 (Single)
€119,00
|
Eris® Studio 5 (Single)
€159,00
|
Eris® Studio 8 (Single)
€239,00
|
|---|---|---|---|
| HF Transducers | 1” Ultra Low Mass, Silk Dome Tweeter | 1” Ultra Low Mass, Silk Dome Tweeter | 1.25” Ultra Low Mass, Silk Dome Tweeter |
| LF Transducers | 4.5" Woven Glass Fiber Composite | 5.25" Woven Glass Fiber Composite | 8" Woven Glass Fiber Composite |
| Monitor Inputs | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA |
| Peak SPL | 99 dB (@ 1 meter) | 102 dB (@ 1 meter) | 106 dB (at 1 Meter) |
| Crossover Frequency | 2.7 kHz | 3.5 kHz 3.5 kHz | 3.5 kHz |
| Power Amplifier Type | Class AB | Class AB | Class AB |
| Product Height | 10" (25.4 cm) | 11.5" (29.2 cm) | 16.5" (41.91 cm) |
| Product Width | 7" (17.8 cm) | 8" (20.32 cm) | 9.84" (25 cm) |
| HF Transducers | |||
| 1” Ultra Low Mass, Silk Dome Tweeter | 1” Ultra Low Mass, Silk Dome Tweeter | 1.25” Ultra Low Mass, Silk Dome Tweeter | |
| LF Transducers | |||
| 4.5" Woven Glass Fiber Composite | 5.25" Woven Glass Fiber Composite | 8" Woven Glass Fiber Composite | |
| Monitor Inputs | |||
| 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | 1- Balanced XLR, 1- Balanced 1/4” TRS, 1- Unbalanced RCA | |
| Peak SPL | |||
| 99 dB (@ 1 meter) | 102 dB (@ 1 meter) | 106 dB (at 1 Meter) | |
| Crossover Frequency | |||
| 2.7 kHz | 3.5 kHz | 3.5 kHz | |
| Power Amplifier Type | |||
| Class AB | Class AB | Class AB | |
| Product Height | |||
| 10" (25.4 cm) | 11.5" (29.2 cm) | 16.5" (41.91 cm) | |
| Product Width | |||
| 7" (17.8 cm) | 8" (20.32 cm) | 9.84" (25 cm) | |
